Qualcomm test-point gallery

Passware Kit Mobile requires the device to be in EDL (Emergency Download) mode to start the user data extraction process.

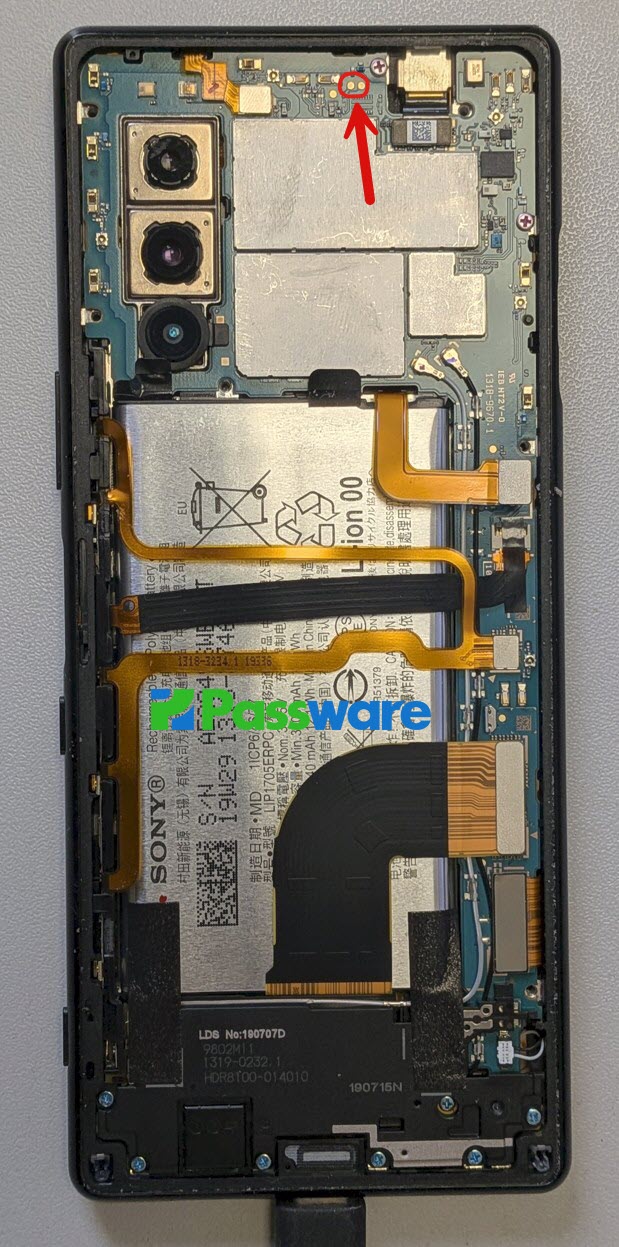

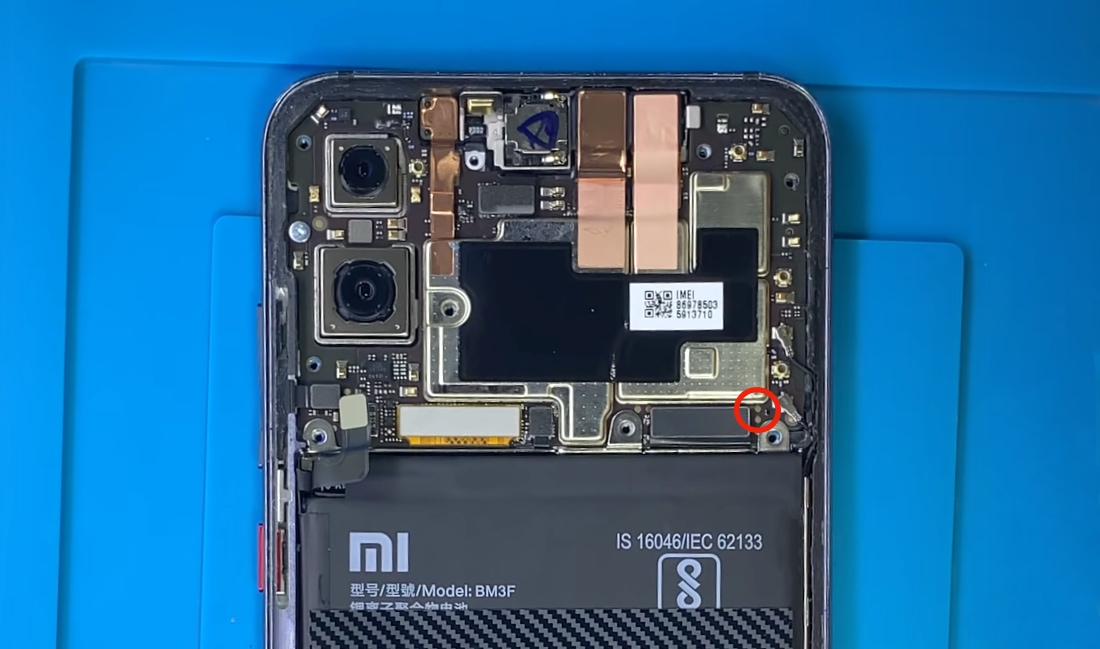

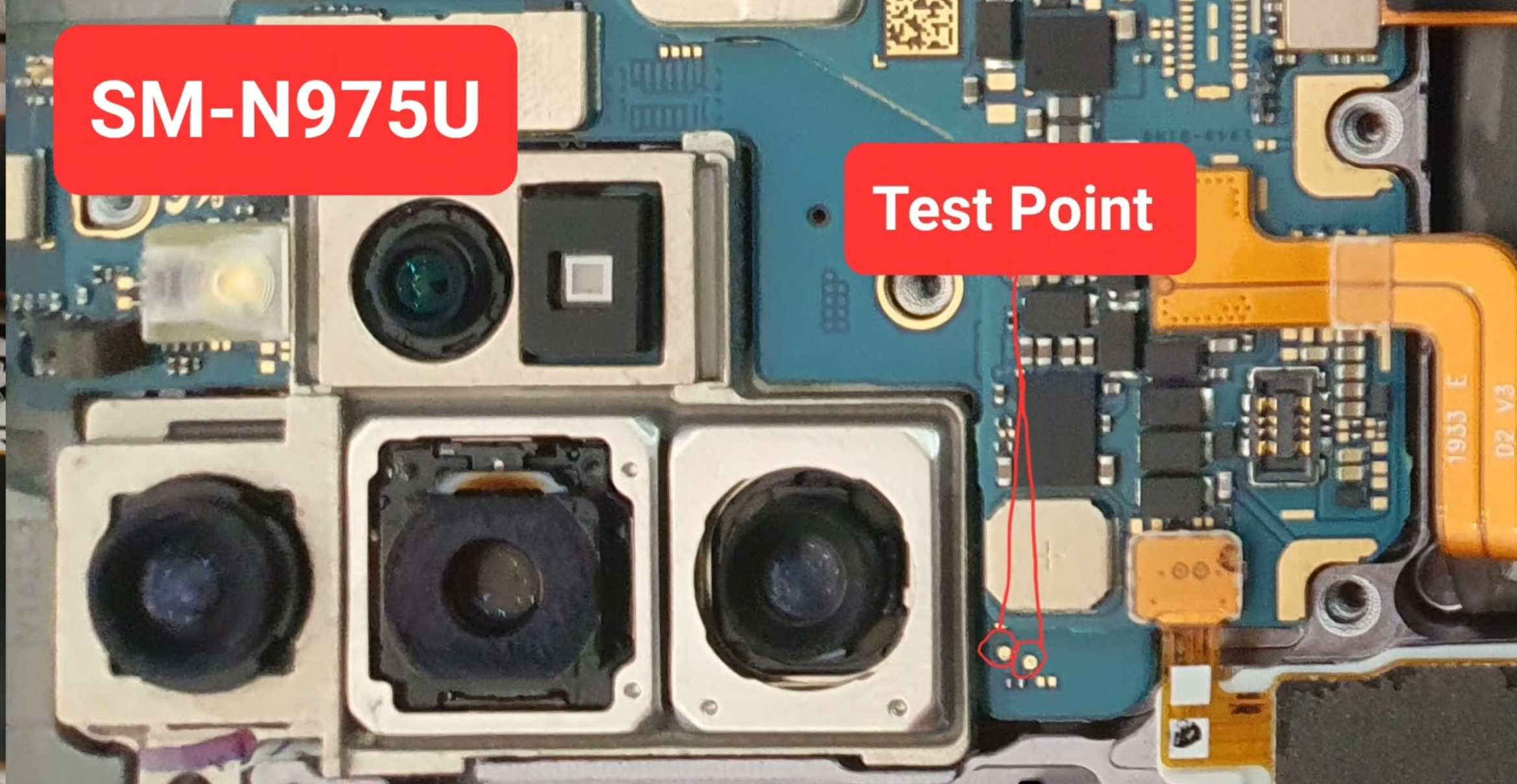

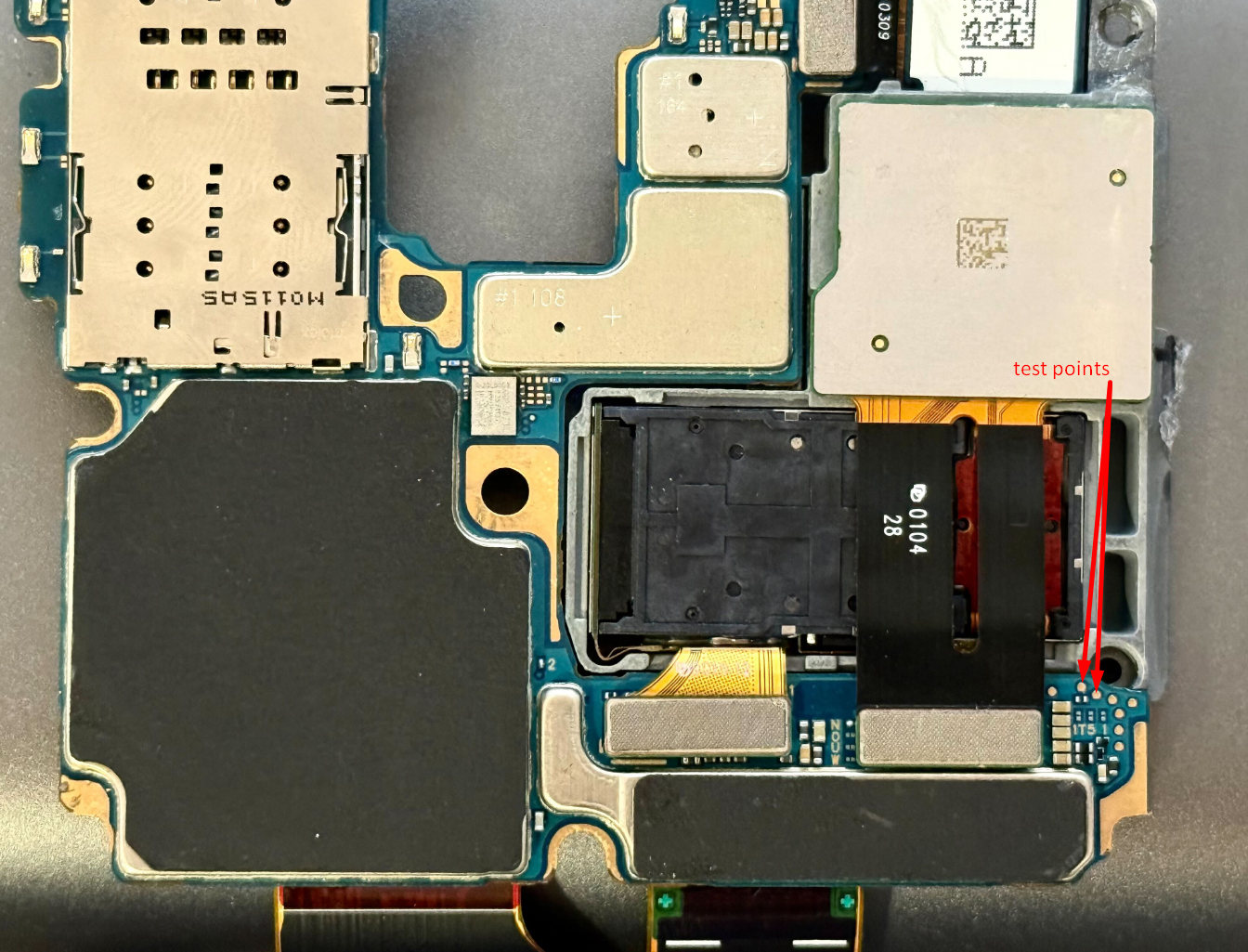

The images below show the test points for different Qualcomm-based smartphones. iFixit has instructions for disassembling mobile devices.
If you have photos of other test points, please share them with us.

Qualcomm Snapdragon 845 (SDM845)

• OnePlus 6/OnePlus 6T - use the “Vol -” + “Vol +” buttons combination.
• Nokia 9 PureView
• Samsung Galaxy Note 9 (Model: SC-01L / SCV40 / SGH-N058 / SM-N9600 / SM-N960D / SM-N960J / SM-N960U / SM-N960U1 / SM-N960W)
• Sony Experia XZ3 (Model: 801SO / H8416 / H9436 / H9493 / PF42 / SO-01L / SOV39)

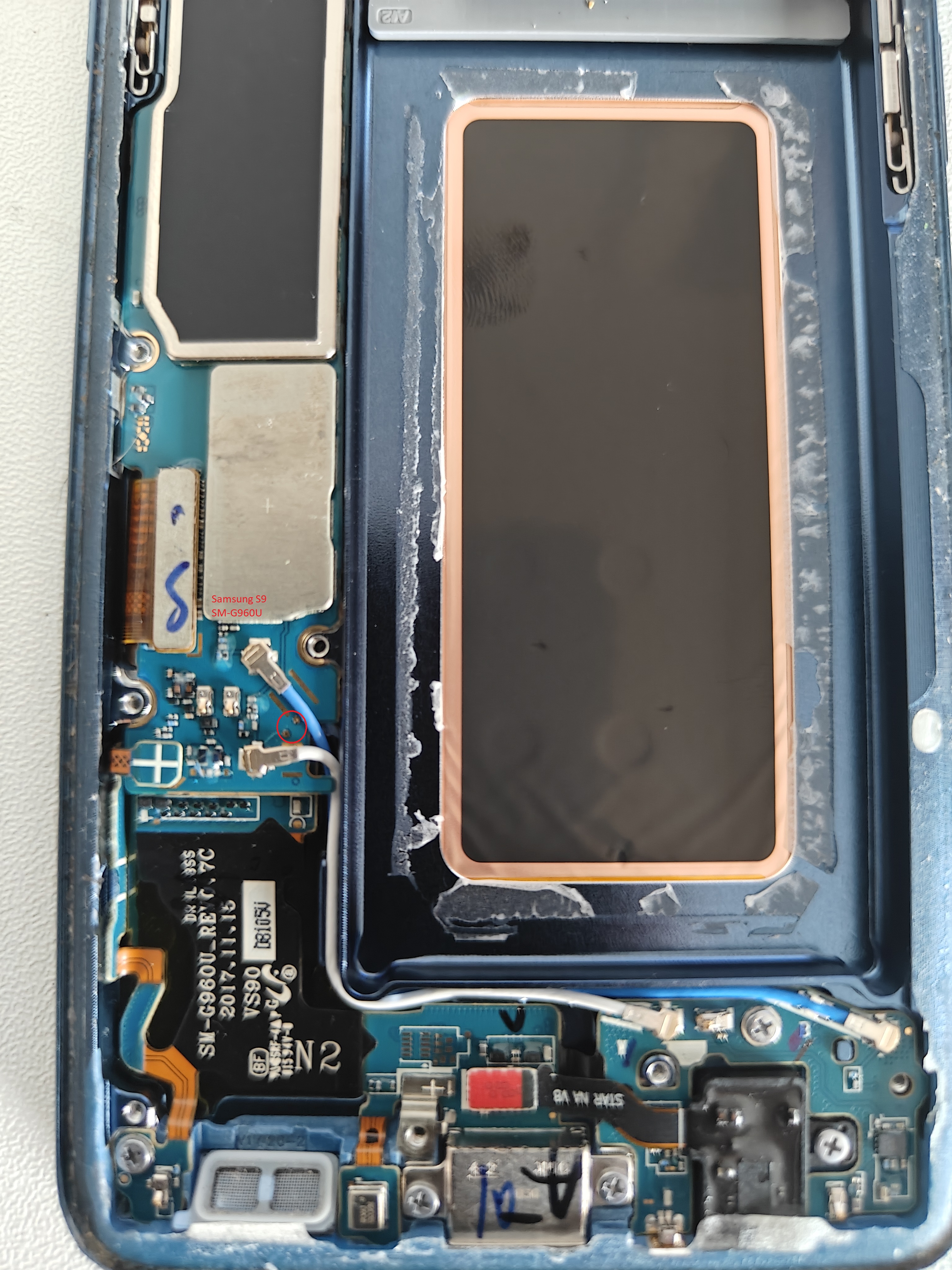

• Samsung Galaxy S9 (Model: SC-02K / SCV38 / SGH-N327 / SM-G9600/DS / SM-G9608/DS / SM-G960D / SM-G960J / SM-G960U / SM-G960U1 / SM-G960W)
• Xiaomi Mi 8 (Model: M1803E1A / M1803E1C / M1803E1T)
• LG V40 (Model: LMV405EB / LMV405EBW / V405QA7 / V405TA / V405TAB / V405UA / V405UA0 / V405UAB / V409N)
• Xiaomi Pocophone Poco F1 / Armoured (Model: M1805E10A)
• Xiaomi Mi Mix 2S (Model: M1803D5XA / M1803D5XC / M1803D5XE / M1803D5XT)
• Xiaomi Mi Mix 3 (Model: M1810E5A / M1810E5C / M1810E5E / M1810E5T)
• Xiaomi Mi 8 Pro / Explorer (Model: M1807E8A / M1807E8S)
• Asus ZenFone 5Z (Model: ZS620KL / ZS621KL)
• LG G7 (Model:G710N / LMG710AWMH / LMG710EM / LMG710EMW / LMG710PM / LMG710TM / LMG710ULM / LMG710VM / LMG710VMX)
• Xiaomi Mi 8 Pro / Explorer (Model: M1807E8A / M1807E8S)

Qualcomm Snapdragon 710 (SDM710)

• Xiaomi Mi 9 Lite / CC9 (Model: M1904F3BC / M1904F3BG / M1904F3BT)
• Lenovo Z5s (Model: L78071)
• Xiaomi Mi CC9 Meitu Edition (Model: M1904F3BC)
• Xiaomi Mi 8 SE (Model: M1805E2A)
• Lenovo K10 Note

Qualcomm Snapdragon 712 (SDM712)

• Xiaomi Mi 9 SE (Model: M1903F2A / M1903F2G)

Qualcomm Snapdragon 450 (SDM450)

• Huawei Enjoy 9 (Model: DUB-AL00 / DUB-AL20 / DUB-TL00)
• Huawei Y7 Prime 2019 (Model:DUB-L21)
• Xiaomi Redmi 5

Qualcomm Snapdragon 439 (SDM439)

• Vivo U1
• Xiaomi Redmi 8A / 8A Pro (Model:M2001C3K3I / M1908C3KI / M1908C3KE / M1908C3KC / M1908C3KG)
• Xiaomi Redmi 7A (Model: M1903C3EC / M1903C3EE / M1903C3EG / M1903C3EH / M1903C3EI / M1903C3ET / MZB7798IN / MZB7799IN / MZB7800IN / MZB7989IN / MZB7995IN / MZB8008IN)

Qualcomm Snapdragon 865 (SM8250)

• Xiaomi Poco F2 Pro (Model: M2004J11G)

Qualcomm Snapdragon 855 (SM8150)

• Xiaomi Redmi K20 Pro (Model: M1903F11A / M1903F11C / M1903F11T / MZB7748IN / MZB7749IN / MZB7750IN / MZB7751IN / MZB7752IN / MZB7753IN)
• Xiaomi Mi 9T Pro (Model: M1903F11G)
• Xiaomi Mi 9 (Model: M1902F1A / M1902F1C / M1902F1G / M1902F1T)

Qualcomm Snapdragon 675 (SM6150)

• Xiaomi Redmi Note 7 Pro (Model: M1901F7BE / M1901F7S / MZB7462IN / MZB7464IN)
• Vivo V17 Pro (Model: 1910)
• Vivo V15 Pro (Model:1818)

Qualcomm Snapdragon 665 (SM6125)

• Xiaomi Redmi Note 8T (Model: M1908C3XG)
• Vivo U10 (Model: 1916)
• Xiaomi Mi CC9e (Model: M1906F9SC)
• Xiaomi Mi A3 (Model: M1906F9SH / M1906F9SI)

__________________________________________________

Resources:
https://miuirom.org/updates/edl-point
