MediaTek test-point gallery

Passware Kit Mobile requires the device to be in Boot ROM (BROM) mode to start the user data extraction process.

Some MediaTek devices support button combos which vary by device model. The options include:

1. Both volume buttons.
2. Both volume buttons + power button.
3. Volume down button only.
4. Google Home key + Volume down button (for LG).

If none of these combos work, test points are the next option. Usually, this means holding the DAT0 or CLK contacts. Visit iFixit for instructions on disassembling mobile devices.

The images below show the test points for some MediaTek-based smartphones.

If you have photos of other pinouts or test points, please share them with us.

MediaTek MT6735

• LG K8 (Model: K350)
• LG X Power (Model: K220)

MediaTek MT6739

MediaTek MT6750

• LG K10 2017 (Model: M250)
• LG K10 Pro / Stylus 3 (Model: M400)

MediaTek MT6753

MediaTek MT6755

MediaTek MT6761

• Huawei Y5 2019 (Model: AMN-LX9 / AMN-L29 / AMN-LX1 / AMN-L21)
• Huawei Y6 (Model: MRD-LX3 / MRD-L23 / MRD-LX1 / MRD-L21 / MRD-L21A / MRD-LX3/ MRD-LX1F / MRD-LX2 / MRD-L22)
• Huawei Honor 8S (Model: 2019 / 2020 KSA-LX9 / KSA-L29 / KSA-LX3 / KSA-L23 / KSA-LX2 / KSA-L22 / KSA-L09 / KSA-L03)
• Huawei Honor Play 8 (Model:KSA-AL00 / KSA-TL00)
• Huawei Y5 2019 (Model: AMN-LX9 / AMN-L29 / AMN-LX1 / AMN-L21)

MediaTek MT6762

• Huawei Honor Play 3e (Model:KSA-AL00 / KSA-TL00)

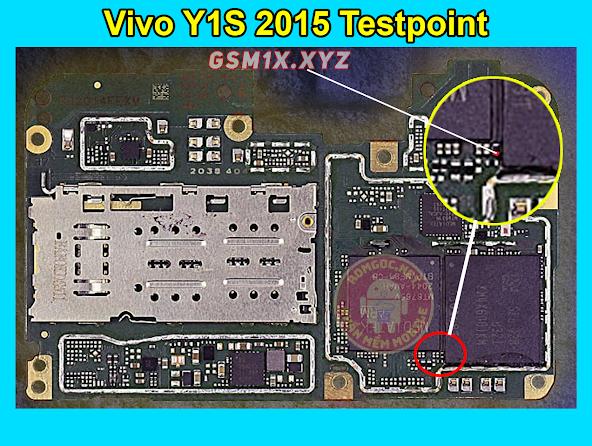

MediaTek MT6765

• Huawei Nova Y60 (Model: WKG-LX9A / WKG-L29A / WKG-L09A)
• Huawei Enjoy 9e (Model: MRD-AL00 / MRD-TL00)
• Huawei Honor 8A (Model: JAT-L29 / JAT-LX9)
• Huawei Honor Play 8A (Model: JAT-AL00 / JAT-TL00)

MediaTek MT6768

MediaTek MT6769

• Samsung Galaxy A22 (Model: SM-A225F/DS / SM-A225F/DSN / SM-A225M/DSN / SM-A225M/N)


MediaTek MT6779

MediaTek MT6785

MediaTek MT6893

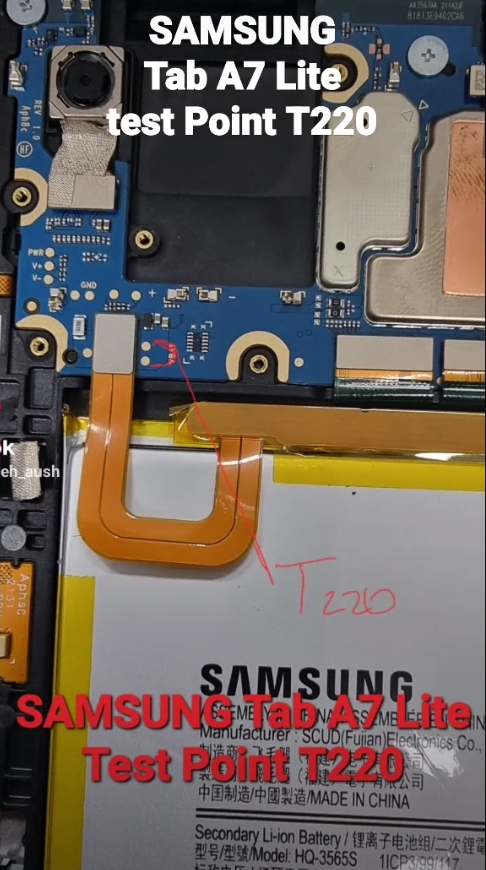

MediaTek MT8768
