Unisoc test-point gallery

Passware Kit Mobile requires the device to be in Boot ROM (BROM) mode to initiate the user data extraction process.

Some Unisoc/Spreadtrum devices support various button combinations, which differ based on the device model. The options include:

1. Both volume buttons.
2. Both volume buttons + power button.
3. Volume down button only.

If none of these combinations are effective, the next option is to use test points. Typically, this involves holding DAT0 or CLK contacts. For instructions on disassembling mobile devices, visit iFixit.

The images below show the test points for some Unisoc-based smartphones. If you have photos of other pinouts or test points, please share them with us.

_______________________________________________________________________

Unisoc SC9863A

• Samsung Galaxy A03 Core 2021 (Model: SM-A032F / SM-A032F/DS / SM-A032M / SM-A032M/DS)
• Nokia C01 Plus (Model: TA-1383 / TA-1387 / TA-1391)
• Nokia C30 (Model: TA-1357 / TA-1359 / TA-1360 / TA-1369 / TA-1377)

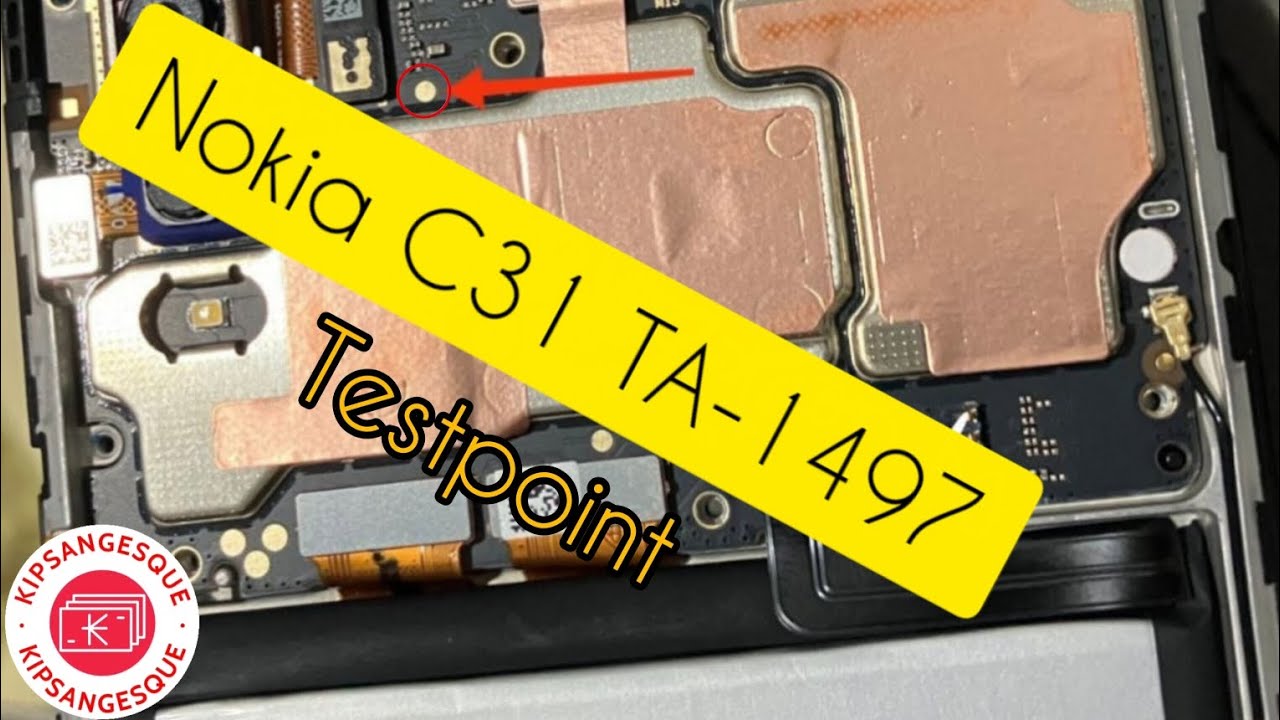

• Nokia C31 (Model: TA-1499 / TA-1497 / TA-1493)
• Nokia C20 2021 (Model: TA-1339 / TA-1348 / TA-1352 / TA-1356)
• Nokia C21+ / C21 Plus (Model: TA-1433 / TA-1431 / TA-1426 / TA-1424)
• Nokia C21 (Model: TA-1356)
• Nokia C22
• Tecno Pop 5 LTE (Model: BD4 / BD4a / BD4i)
• Nokia C12 Pro

Passware Tip: Nokia C12 has the same test points as Nokia C12 Pro.

Unisoc T606

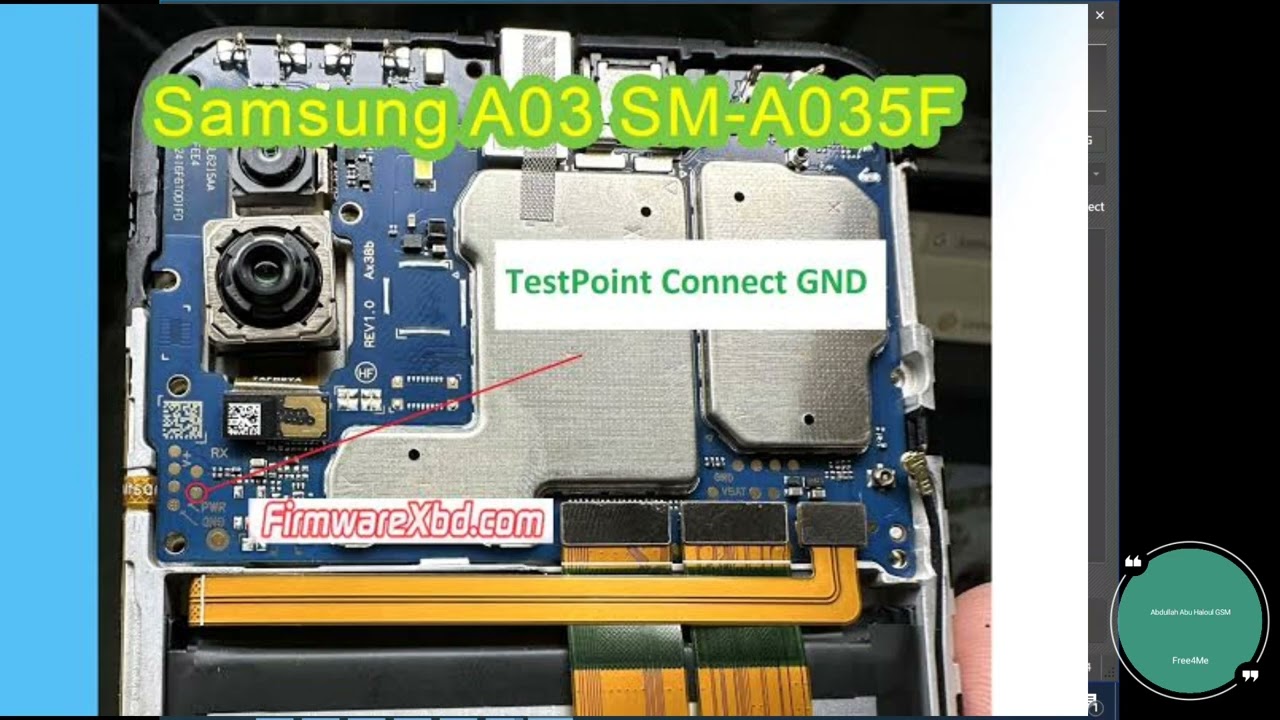

• Samsung Galaxy A03 2021 (Model: SM-A035F/DS / SM-A035G/DSN / SM-A035M / SM-A035M/DS)
• Motorola Moto E20 (Model: XT2155-1 / XT2155-3)
• Nokia G11
• Nokia G21
• Nokia G22
• Motorola Moto E13

Unisoc T610

• Realme C21Y (Model: RMX3261)
• Infinix Hot 12 Play (Model: X6816 / X6816C / X6816D)

Unisoc T616

• Motorola Moto G14 (Model: XT2341-2 / XT2341-3 / XT2341-4)

Unisoc T700

• Motorola Moto E40 (Model: XT2159-1 / XT2159-2 / XT2159-3 / XT2159-6)
• Motorola Moto G20 (Model: XT2128-1 / XT2128-2)
