Passware Kit Mobile requires the device to be in Boot ROM mode to start the user data extraction process.
Exynos Octa 9810-based devices support button combos that may vary by device model. The options include:
- Both volume buttons + power button.
- Volume down button + Bixby button.
If none of these combos work, test points are the next option. Usually, this means holding the DAT0 and CLK contacts. Visit iFixit for instructions on disassembling mobile devices.

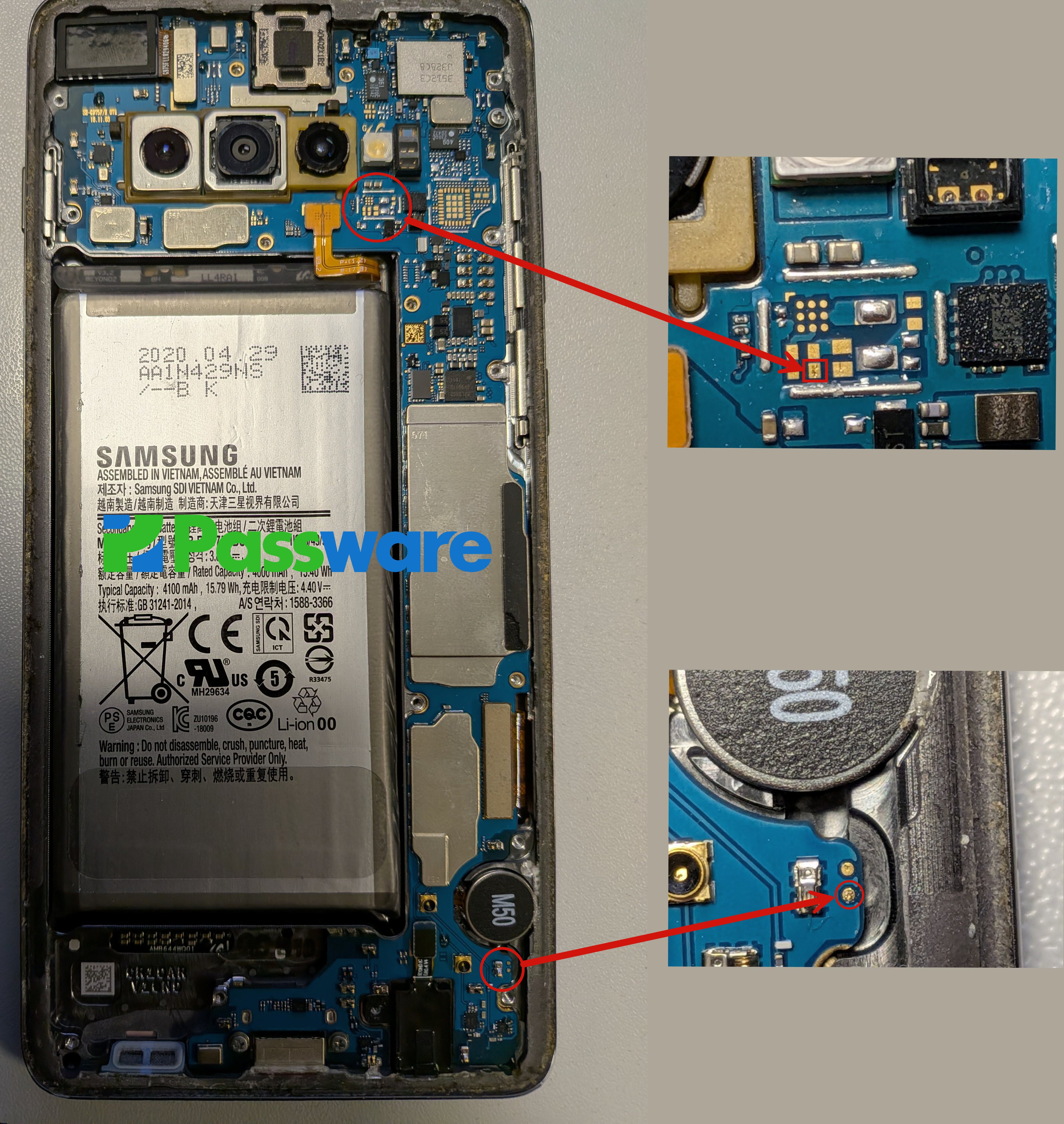

The images below show the test points for Exynos-based smartphones.
If you have photos of other test points, please share them with us.
Working with the target device
1. Switch the device to the Boot ROM mode via test-points:
1.1. Disassemble the device, remove the battery and lift up the motherboard (remove the protective cover for the flash memory chip);
1.2. Ground the test points according to the instructions;
NOTE: The pins may be additionally covered with a protective layer that needs to be removed.
1.3. Press and hold the Power button (or shorten the corresponding pins for Samsung S8/S8+)
1.4. While holding the test points and pressing the power button, connect the mobile device to the computer via USB cable;
2. If everything is done correctly, the Exynos device will appear in the Windows Device Manager for approximately 5-6 seconds, disappear for a short time, and then re-appear for 5-6 seconds;
3. As soon as Passware Kit Mobile proceeds to the "Preparing device" step, disconnect the test points, but keep pressing the power button.
A continuous operation (for example, userdata extraction) requires the battery to be connected on the Samsung S7/S7 Edge, but not on the Samsung S8/S8+/Note8.
Exynos 8 Octa 8890
Exynos 9 Octa 8895M
Exynos Octa 9820
Exynos 2100
Exynos 990
Exynos 850
Exynos 9610
Exynos 9611
Exynos 2200
_______________________________________________________________________
If one of the images in this gallery is yours and is not credited, please contact us and we will add the attribution or remove it.
Samsung Galaxy A21s test point: MobileRdx (mobilerdx.com)
Samsung Galaxy M12 test point: GSM-Helpful (gsm-helpful.com)
Samsung Galaxy S22+ test point: Sigma (sigmakey.com)
