MediaTek test-point gallery

Passware Kit Mobile requires the device to be in BROM (boot ROM) mode to start the user data extraction process.

Some MediaTek devices support button combos which vary with device model. The options include:

1. Both volume buttons.
2. Both volume buttons + power button.
3. Volume down button only.
4. Google Home key + Volume down button (for LG).

If none of these combos work, test points are the next option. Usually, this means holding the DATA0 or CLK contacts. Visit iFixit for instructions on disassembling mobile devices.

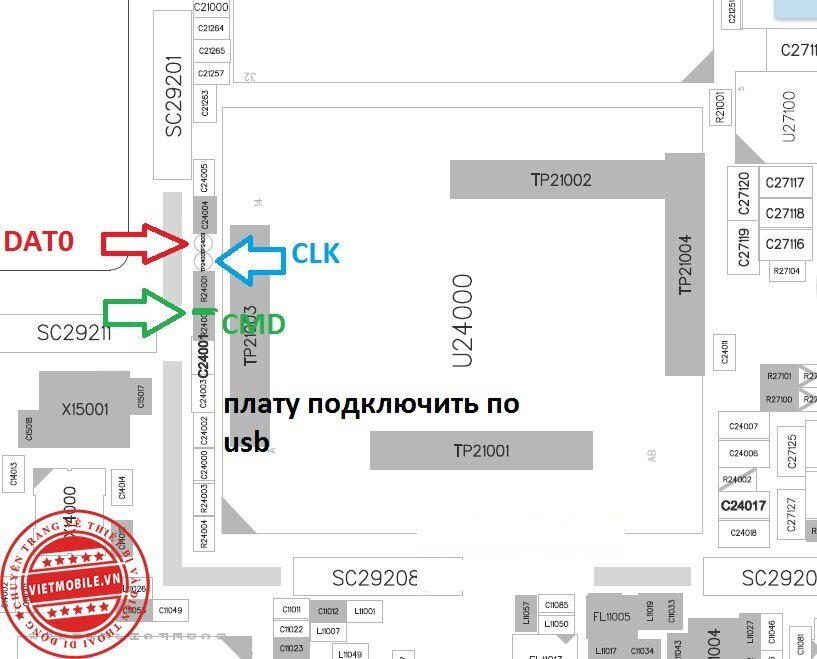

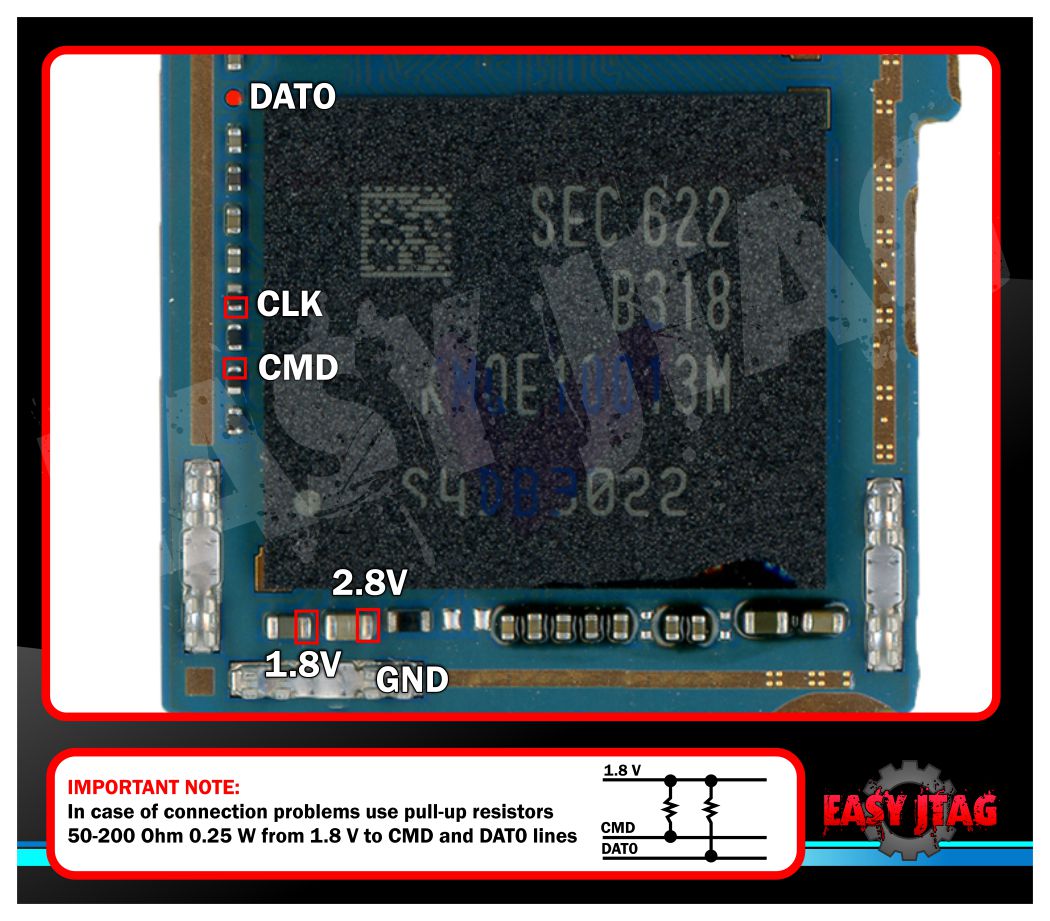

The images below show the test points for some MediaTek-based smartphones.

If you have photos of other pinouts or test points, please share them with us.

Brand:              Platform:  (version 5, 6, 7)

MediaTek MT6735

LG K8 (Model: K350)

• LG K8 4G LTE
• LG K8 Dual SIM 4G LTE

LG X Power (Model: K220)

• LG X Power 2 LTE-A
• LG X Power 2 Dual SIM LTE-A

MediaTek MT6750

LG K10 2017 (Model: M250)

• LG K10 2017 Dual SIM LTE
• LG K10 Novo 2017 Dual SIM LTE-A
• LG K10 2017 LTE

LG K10 Pro / Stylus 3 (Model: M400)

• Stylus 3 Dual SIM TD-LTE
• Stylus 3 LTE
